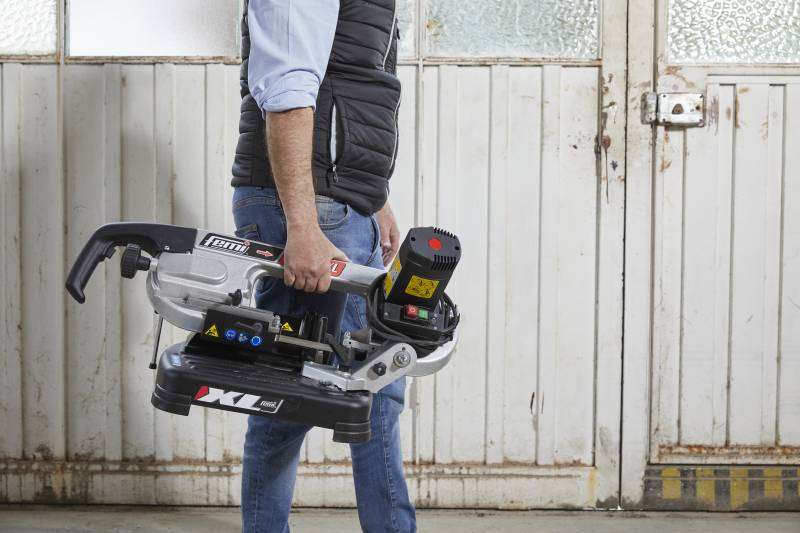

Portable Bandsaws

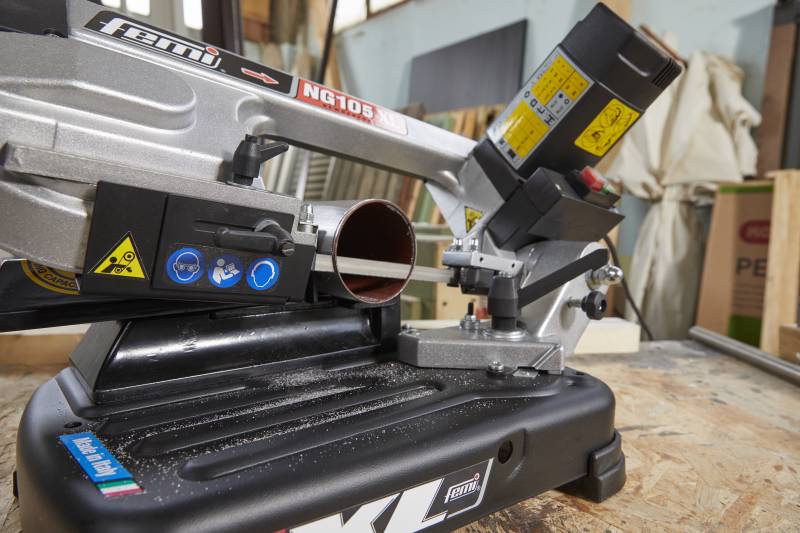

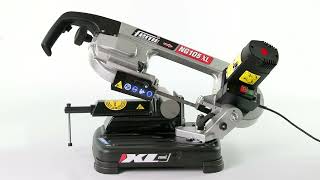

NG 105 XL
Portable bandsaw - Patented «NG SYSTEM»
Max 105 mm
| Article | Code |
|---|---|
| NG 105 XL | 8484720 |
Cutting capacity
 |
 |
 |
|
|---|---|---|---|
| 0° | 100x85 mm | 105 mm | 95x95 mm |
| 45° | 65x60 mm | 65 mm | 65x65 mm |
| Arm downfeed | Manual |
|---|---|
| Blade development (mm) | 1335x13x0,65 |
| Motor power (watt) | 950 |
| Electrical supply (Volt-Hz) | 230 - 50 |
| Weight (Kg) | 16 |
| Blade speed (mt/min) | 60/80 2 speeds |
| Toothing Z/1" | 14 |
| Packaging (mm) | 900x400x520 |
Technical features
- Up to 35% faster cutting compared to the traditional bandsaw thanks to the opposite rotation direction of the bandsaw blade (“NG SYSTEM”)
- Innovative blade tensioning device with clutch to check and adjust the proper tension of the blade (Patented)
- Adjustable cutting angle from 0° to 45°
- Powerful 950 Watt motor.
Standard equipment
- Adjustable bar stop-rod for mass-produced cuts (L= 500mm)
- Filter-circuit for electromagnetic interference damping according to rules in force.
