Column drill presses

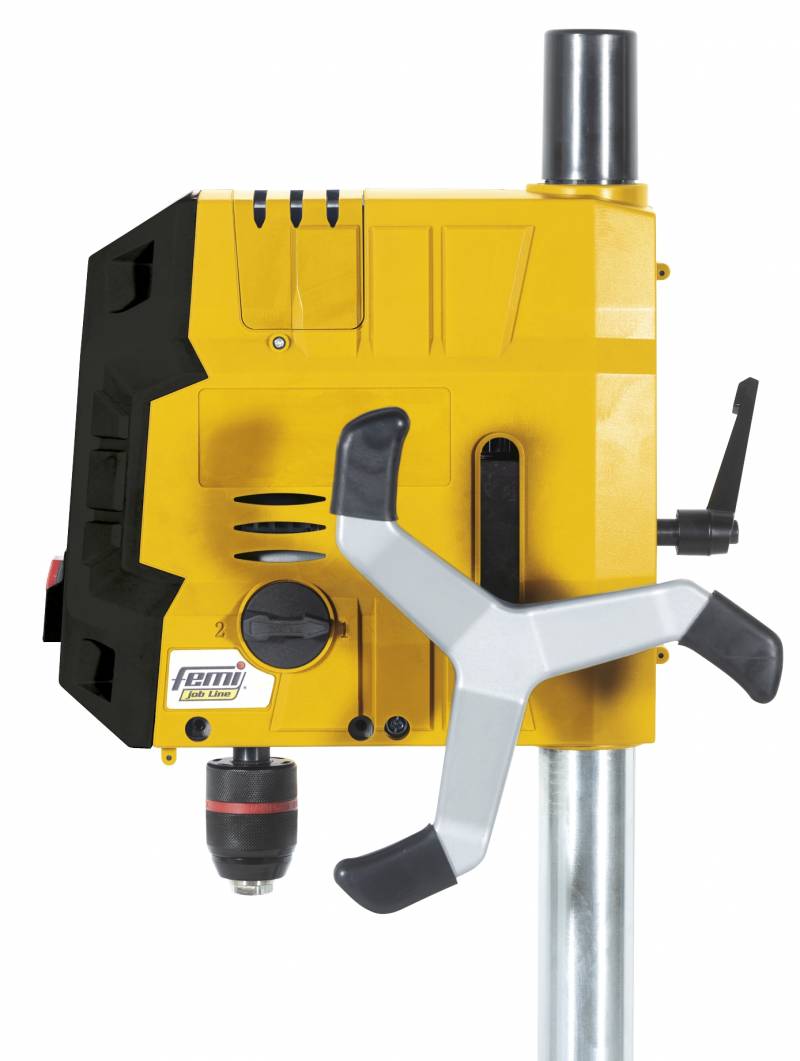

DIGI Max 13
Drill press bench model.
| Article | Code |
|---|---|
| DIGI Max 13 | 8086136 |
| Voltage | Single phase |
|---|---|
| Motor power (watt) | 720 |
| Weight (Kg) | 9.5 |
| Packaging (mm) | 620x356x255 |
| RPM | 220-2550 |
| Type | Bench |
| Chuck type | Self-locking |
| Chuck (mm) | 13 |
| Speed | 12 230-2470 |
| Height (mm) | 660 |
| Column diameter (mm) | 46 |
| Chuck stroke (mm) | 280 |
| Drilling capacity (mm) | 80 |
| Workbench (mm) | 340x300 |
Technical features
Column diameter 46 mm
Variable and electronic speed
Drilling speed: position 1 = 220-880 min-1; position 2 = 650-2550 min-1
Drilling capacity 80 mm
Chuck capacity from 1,5 up to 13 mm
Distance from chuck to base 280 mm
Height 660 mm
Workbench-base 340x300x40 mm
Laser: classe 2, wavelenght 650 mm, power <1 mW
Standard equipment
Laser
Led
Vice
